J-Link PLUS Compact (8.19.28)
$748.00
You save when ordering in bulk quantities.
Debug Probe
| Download Speed to RAM | 1.0 MiB/s |
| Download Into Flash1 | ✓ |
| GDB Server | ✓ |
| Unlimited Flash Breakpoints | ✓ |
| J-Flash | J-Flash SPI | ✓ |
| RDI | ✓ |
| Ozone | ✓ |
| Ethernet | ✗ |
| ✓ Included ✗ Not Included | |
1 For use from within an IDE
Stock Status: In Stock
Delivery Time: Typically ships within 1 Business Day
Product Description
As you find the 8.19.28 J‑Link PLUS Compact of interest, the 8.16.28 J-Link ULTRA+ may also be of interest, as the performance is greatly enhanced. Learn more now by visiting the link above.

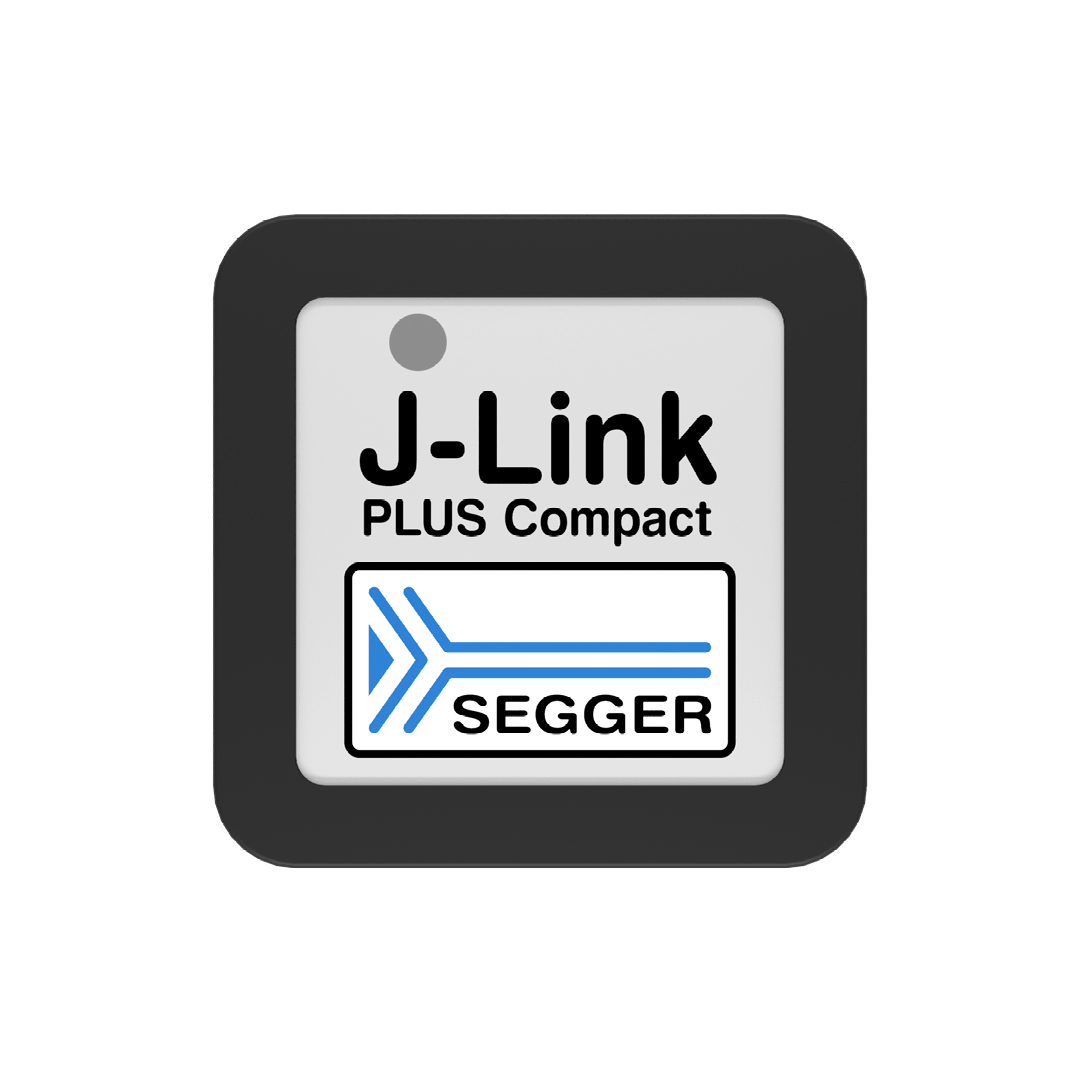

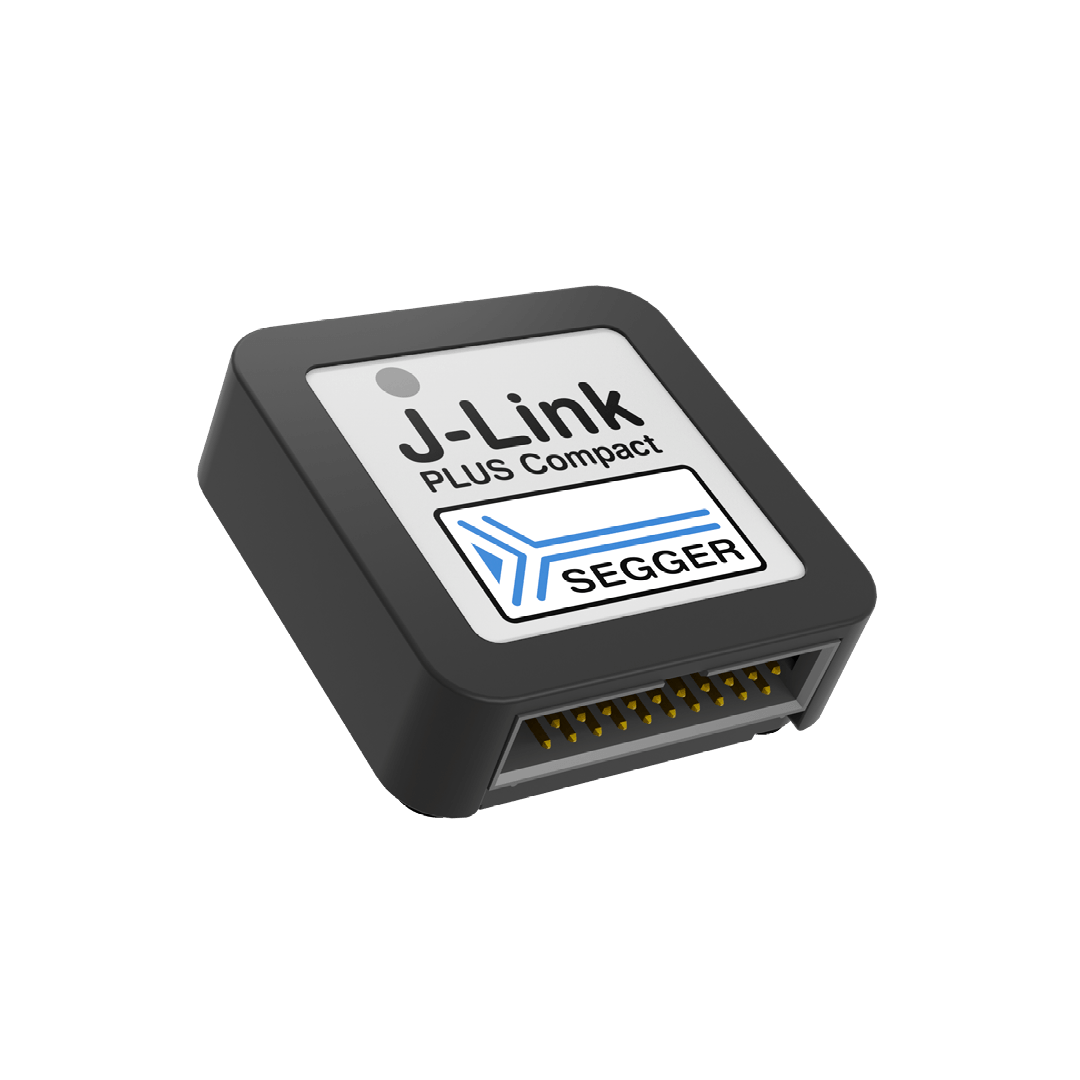

8.19.28 J-Link PLUS Compact

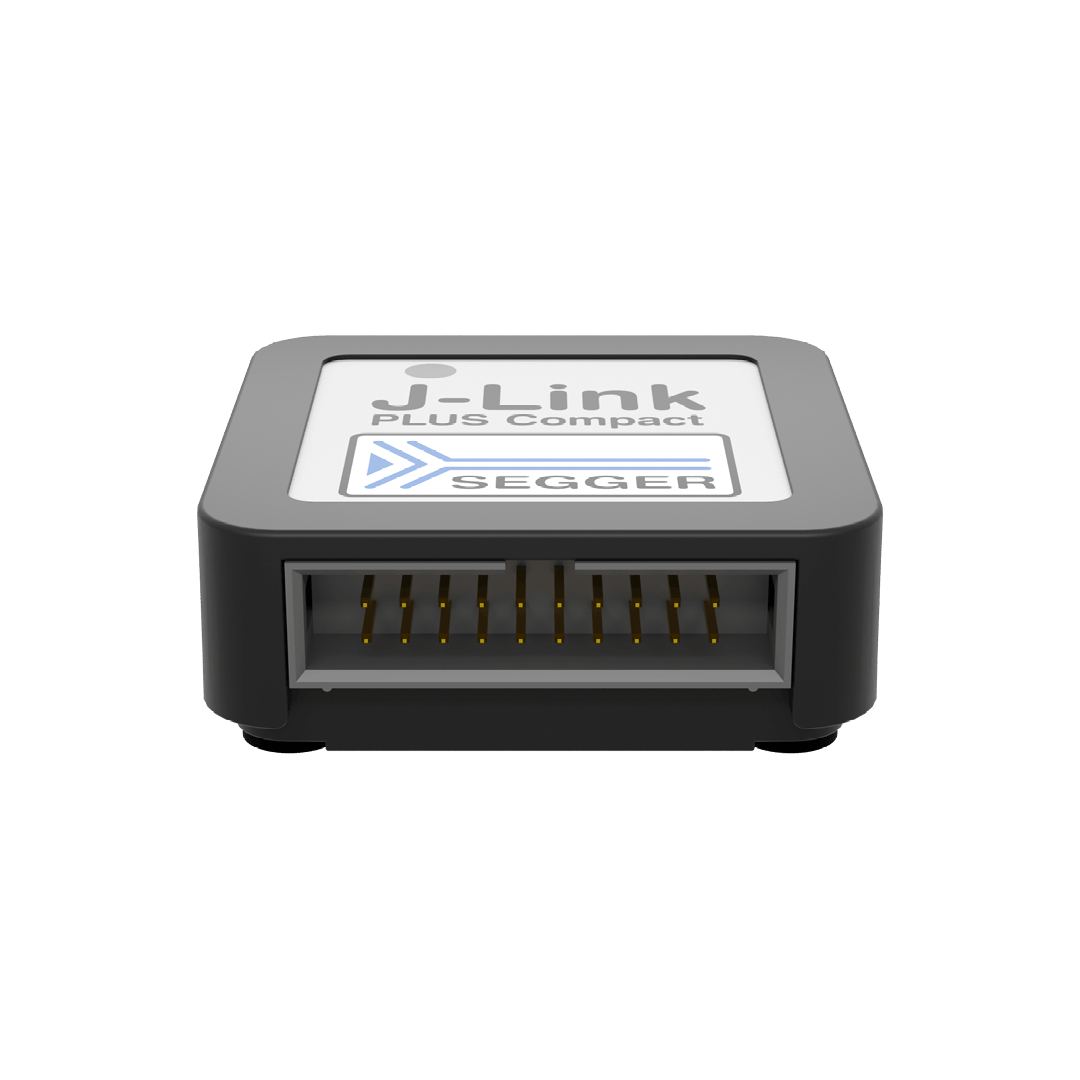

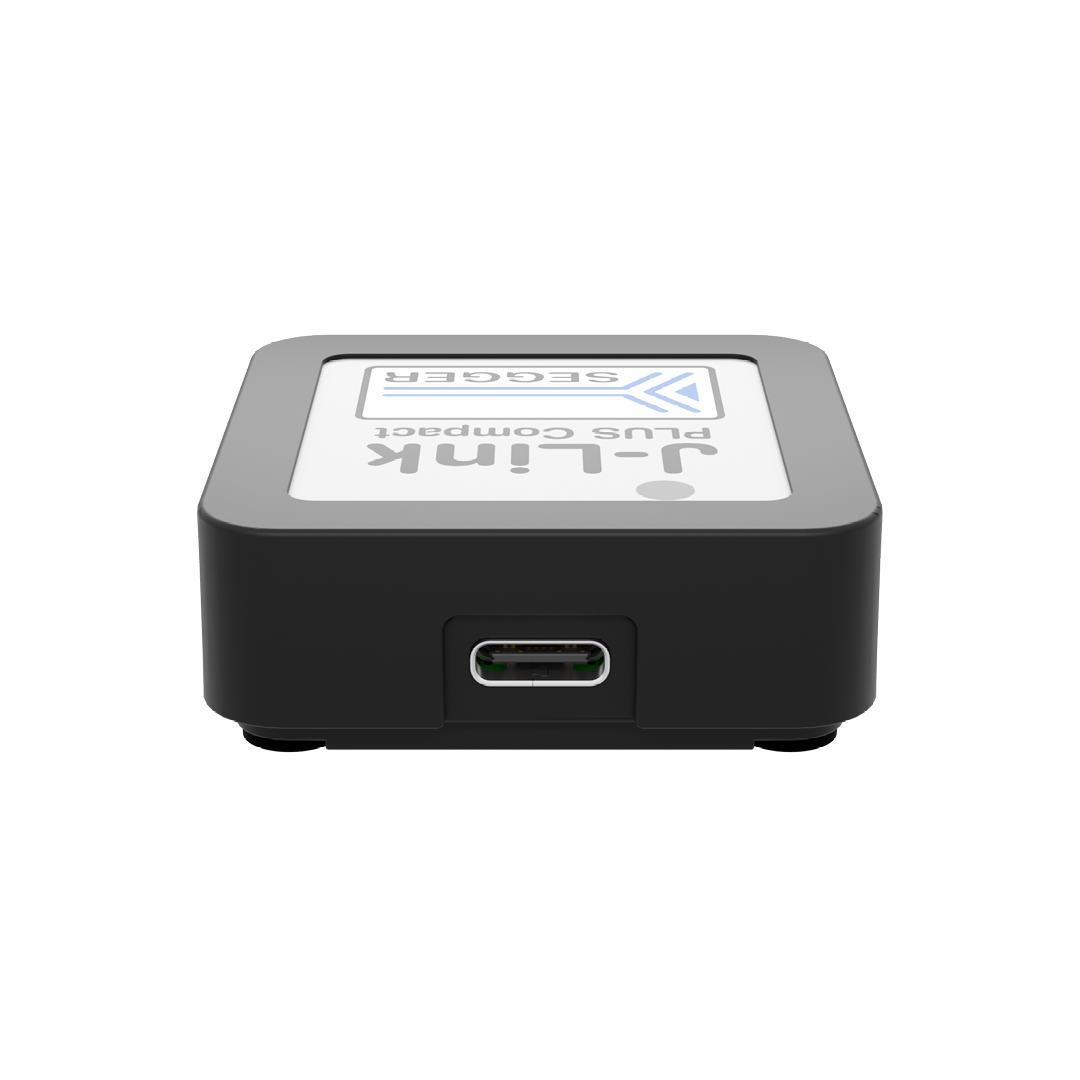

The software enhanced J‑Link PLUS Compact (JLink PLUS Compact). Includes a 20‑pin, 0.1″ ribbon cable. Additional adapters (Sold Separately) as required by the target hardware. No power supply required (driven and powered through USB). Includes; the J‑Link GDB Server, J‑Flash, J‑Link RDI/RDDI, J‑Link Unlimited Flash Breakpoints.
- J‑Link Information
- Flash Loaders Information
- GDB Server Information
- Remote Server Information
- SWO Viewer Information
- J‑Scope (Real‑Time Data Visualization) Information
- Real Time Transfer Information
- J‑Flash Information
- Unlimited Flash Breakpoints Information
- RDI Information
- Ozone – The J‑Link Debugger Information
- Optional Adapters (Sold Separately)
- Supported IDEs (Additional Information)
Box Contents
- J‑Link PLUS Compact debug probe
- .1″ 20‑pin ribbon cable (18cm)
Includes free software updates and 1 (one) year of email support.
Additional Product Information on segger.com
Additional Information
| Weight | 1 lbs |
|---|---|
| Dimensions | 6.25 × 4.25 × 1.25 in |
| Brand | SEGGER |
| Color | Black |
| Product Type | Debug Probe, J-Link, JLink |
| Host Interface | USB |
| Software Features | Flash Download, GDB Server, J-Flash, J-Flash SPI, Monitor Mode Debugging, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints |
| Supported Targets | ARM Cortex Cores, ARM Legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051 |
| Target Interface | cJTAG, FINE, ICSP, JTAG, SWD, SWO |
| Trace Interface | ETB Trace |
| Target Interface Speed | Standard (1 MB/s) |
