J-Link ULTRA+ (8.16.28)
$998.00
You save when ordering in bulk quantities.
Ultra Fast Debug Probe
| Download Speed to RAM | 4.0 MiB/s |
| Download Into Flash1 | ✓ |
| GDB Server | ✓ |
| Unlimited Flash Breakpoints | ✓ |
| J-Flash | J-Flash SPI | ✓ |
| RDI | ✓ |
| Ozone | ✓ |
| Ethernet | ✗ |
| ✓ Included ✗ Not Included | |
1 For use from within an IDE
Stock Status: In Stock
Delivery Time: Typically ships within 1 Business Day
Product Description

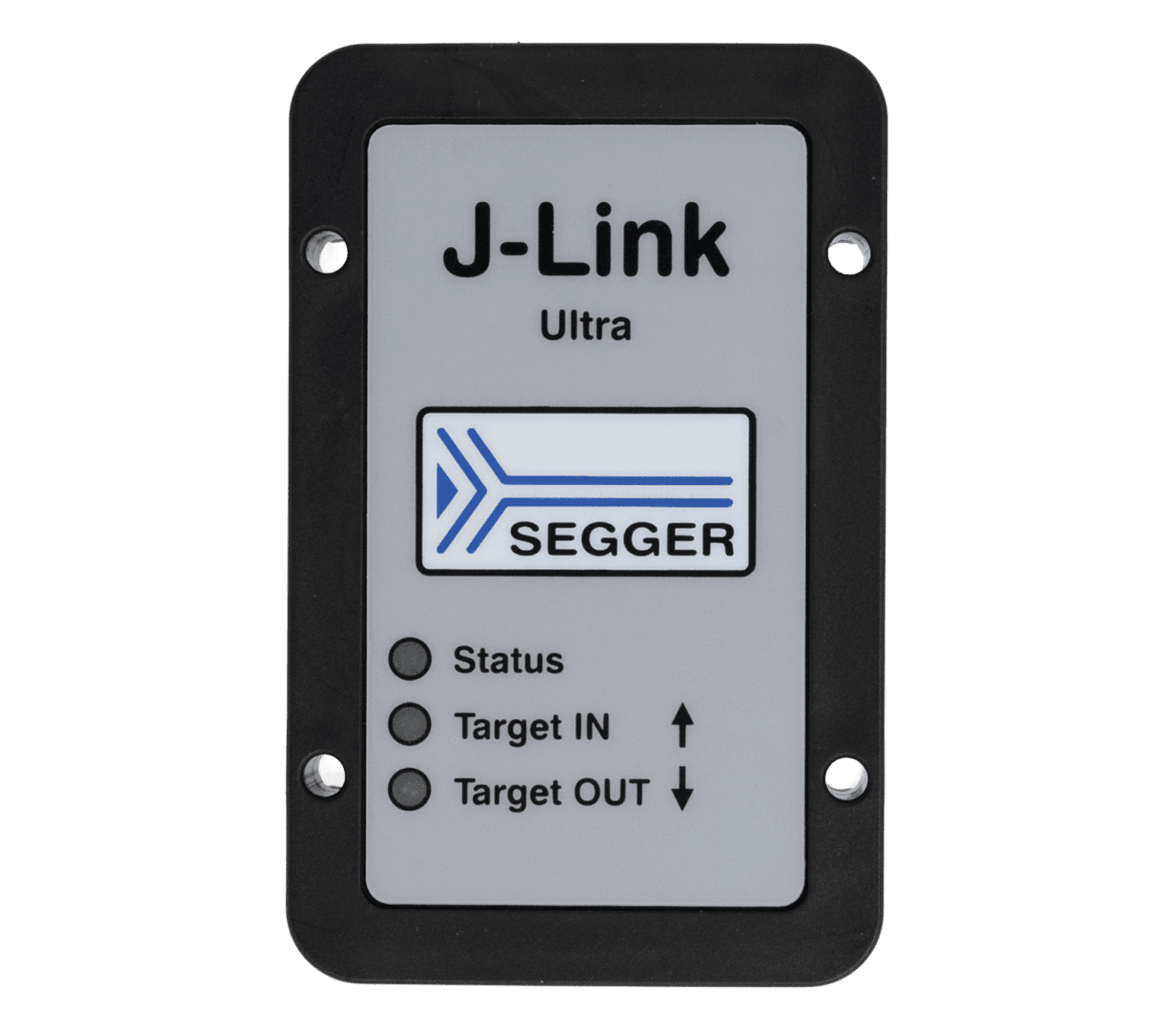

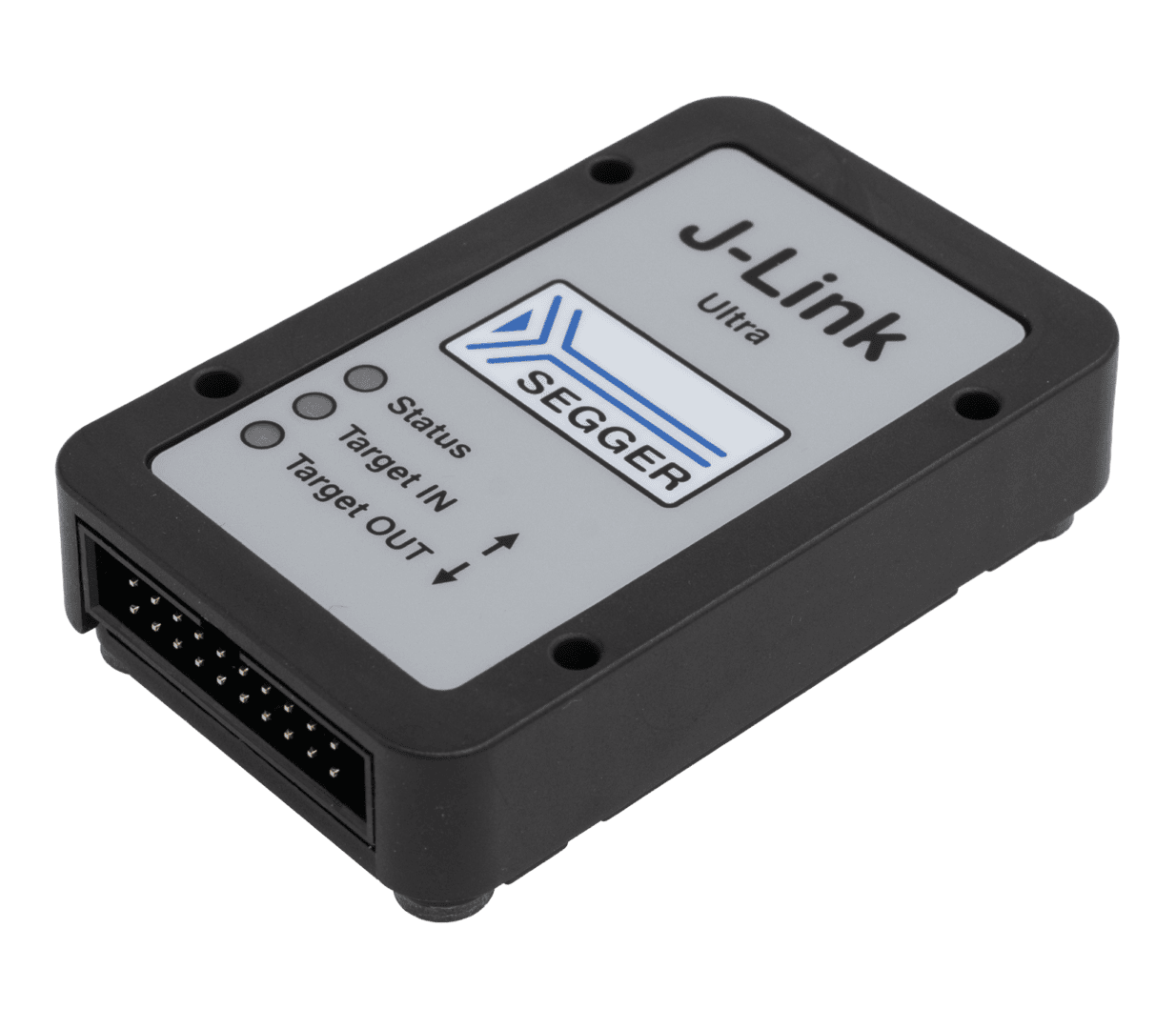

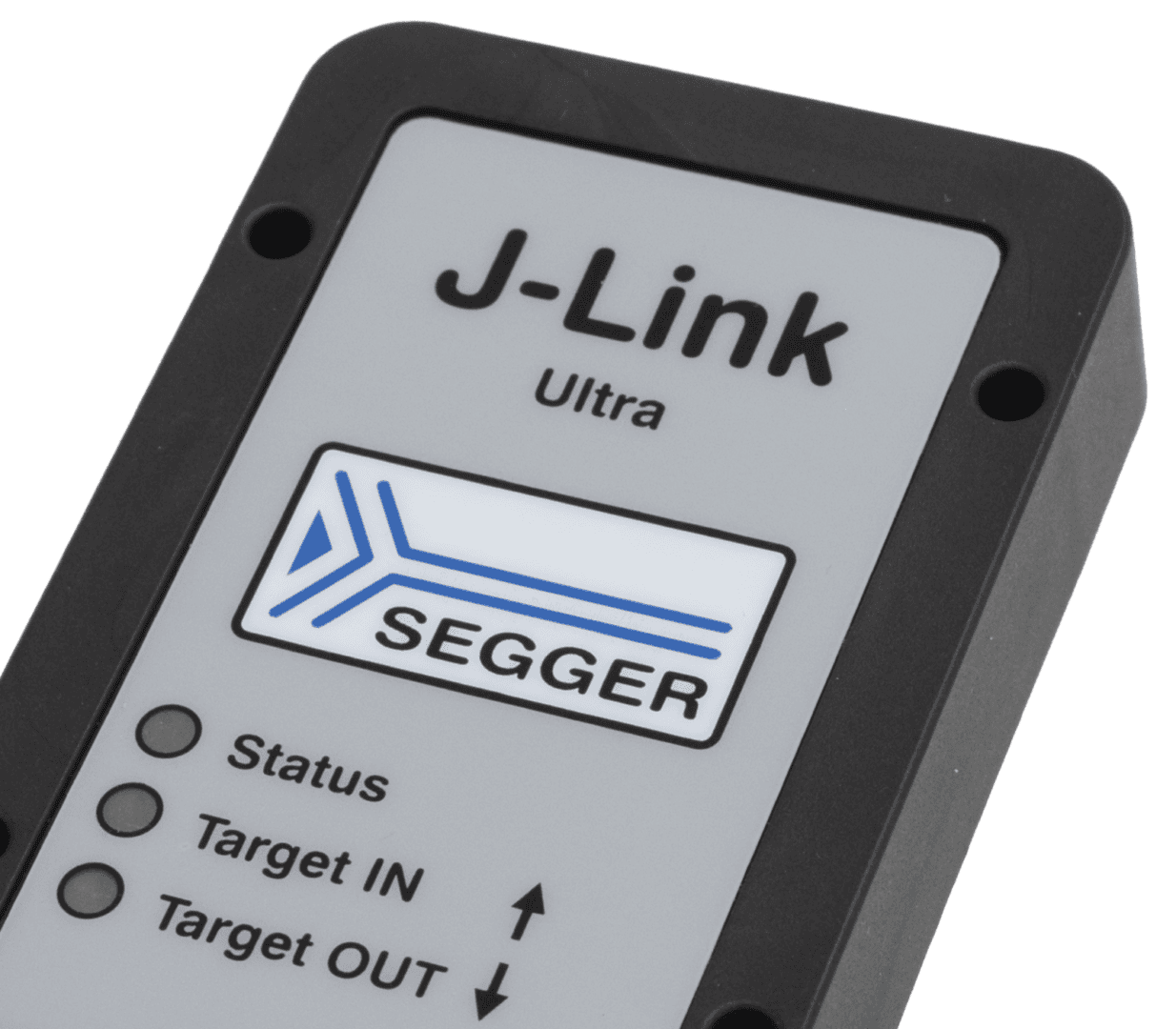

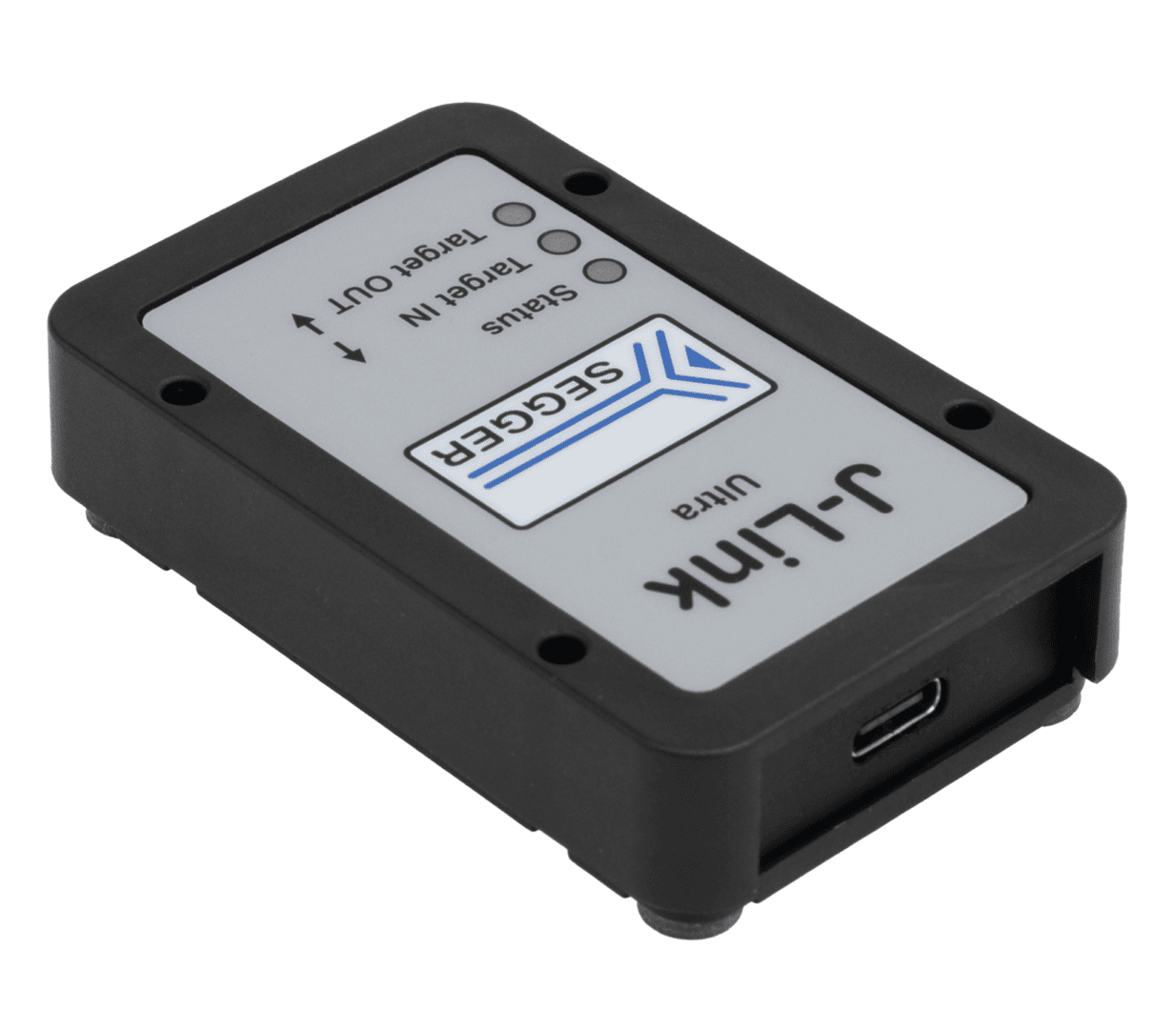

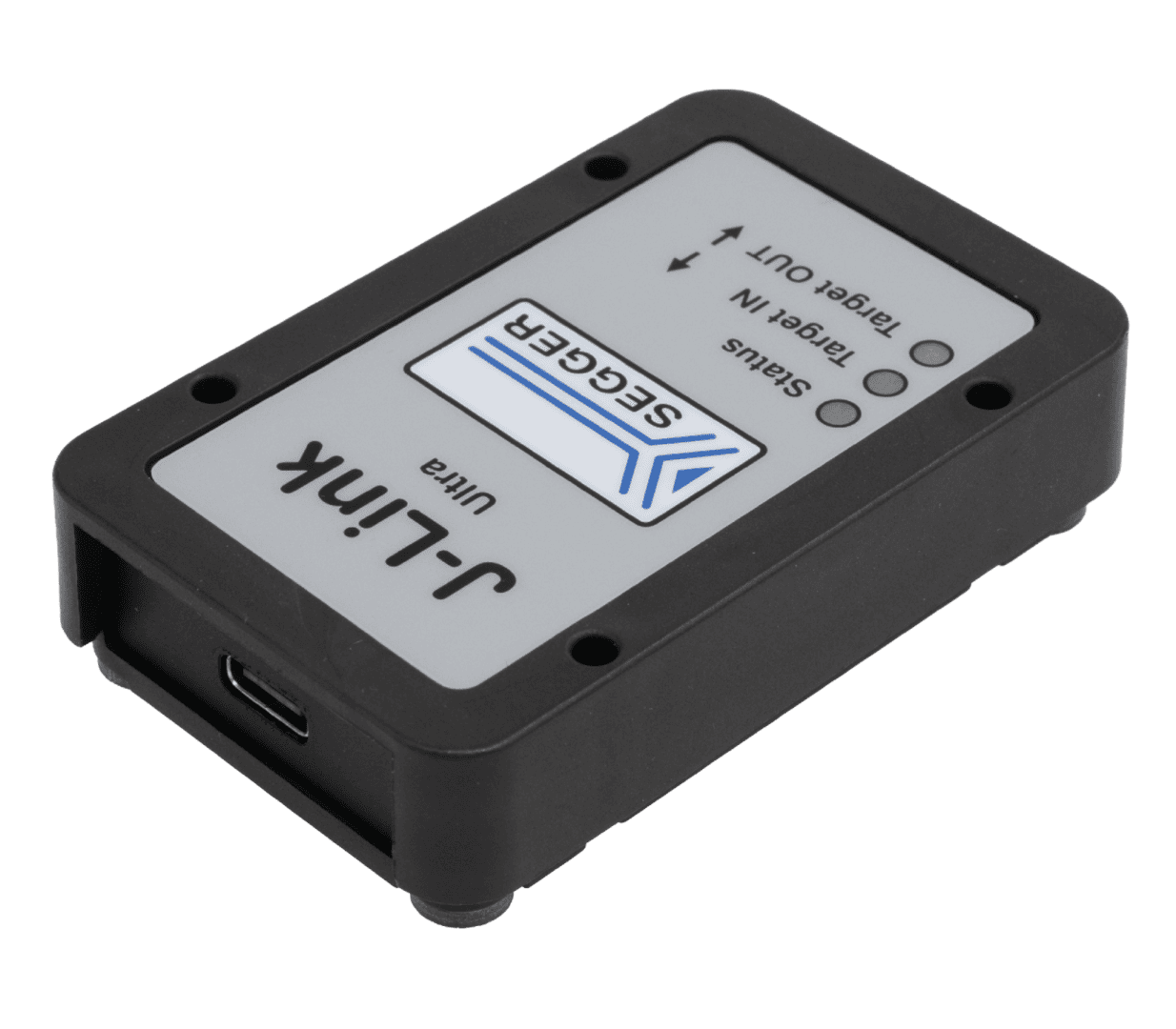

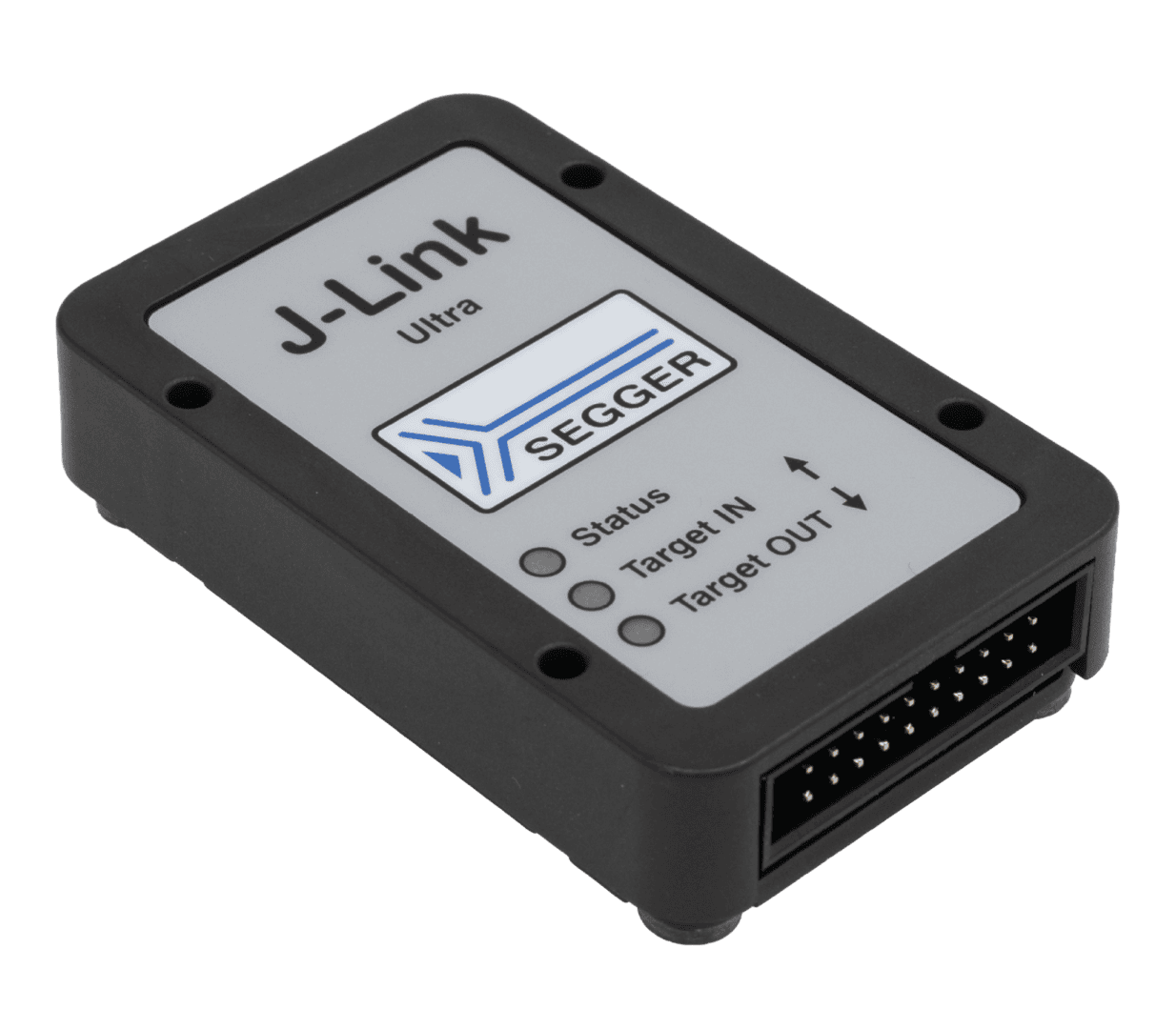

SEGGER 8.16.28 J‑Link ULTRA+
The J‑Link ULTRA+ (JLink ULTRA Plus) is based on the highly optimized and proven SEGGER J‑Link, the J‑Link ULTRA+ offers even higher speed. This is due to the faster CPU, built‑in FPGA and High Speed USB interface. This ARM/Cortex Debug Probe, Microchip PIC32 Debug Probe, Renesas RX Debug Probe, and SiLabs EFM8 / C8051 Debug Probe. Includes a USB cable, and a 20‑pin, 0.1″ ribbon cable. Other adapters for various connection types are also available (Sold Separately). No power supply required (driven and powered through USB). Includes unlimited Flash breakpoints (Unlimited Flash Breakpoints), the ARM Remote Debug Interface (RDI), remote GDB server for the GNU Project Debugger (GDB Server), Flash Loaders, and software to program internal and external flash of your microcontroller (J‑Flash).
- J‑Link Information
- Flash Loaders Information
- GDB Server Information
- Remote Server Information
- SWO Viewer Information
- J‑Scope (Real‑Time Data Visualization) Information
- Real Time Transfer Information
- J‑Flash Information
- Unlimited Flash Breakpoints Information
- RDI Information
- Ozone – The J‑Link Debugger Information
- Optional Adapters (Sold Separately)
Supported IDEs (Additional Information)
Includes free software updates and 1 (one) year of email support.
Additional Product Information on segger.com
Additional Information
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 8.25 × 1.75 in |
| Brand | SEGGER |
| Color | Black |
| Product Type | Debug Probe, J-Link, JLink |
| Host Interface | USB |
| Software Features | Flash Download, GDB Server, J-Flash, J-Flash SPI, Monitor Mode Debugging, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints |
| Supported Targets | ARM Cortex Cores, ARM Legacy Cores, Microchip PIC32, Renesas RX, RISC-V, SiLabs 8051 |
| Target Interface | cJTAG, FINE, ICSP, JTAG, SWD, SWO |
| Trace Interface | ETB Trace |
| Target Interface Speed | High (4 MB/s) |
