J-Trace PRO (8.24.00)
$3,780.00
Stock Status: In Stock
Delivery Time: Typically ships within 1 Business Day
Product Description

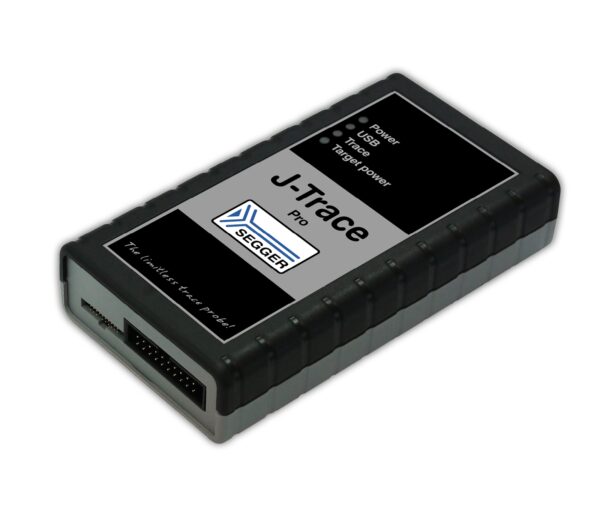

Get the J-Trace PRO (JTrace PRO), the superspeed trace probe that is designed to support the advanced tracing features of all popular cores and architectures.
With its superspeed USB 3.0 interface, J-Trace PRO enables continuous streaming trace via USB with full trace clock. This lifts the limits from internal buffers, slowing data transmission to provide the insights a developer needs to optimize code.
With J-Trace PRO, complete traces can be captured over long periods. This enables the recording of infrequent, hard-to-reproduce bugs. It is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state.
SuperSpeed USB 3.0 driven debug probe supporting unlimited streaming trace for Cortex-M, Cortex-R, Cortex-A, and RISC-V devices, 64 MB on-board trace buffer
Up to 4.0 MB/s download speed
PRO Software Package includes:
-
J-Flash / J-Flash SPI
-
J-Link Unlimited Flash Breakpoints
-
Ozone – The J-Link Debugger
-
Monitor Mode
-
J-Link ARM RDI / RDDI
Box Contents
-
J-Trace PRO trace probe
-
.05″ 20-pin debug & trace cable
-
.1″ 20-pin ribbon cable (18 cm)
-
USB 3.0 cable
-
Cortex-M Trace Reference Board
-
Micro USB cable
Includes free software updates and 1 (one) year of email support.
Additional Product Information on segger.com
Additional Information
| Weight | 1 lbs |
|---|---|
| Dimensions | 6 × 8.25 × 1.75 in |
| Brand | SEGGER |
| Color | Black |
| Product Type | Debug Probe, J-Trace, JTrace, Trace Probe |
| Host Interface | Ethernet, USB |
| Software Features | Flash Download, GDB Server, J-Flash, J-Flash SPI, Ozone, RDDI, RDI, Real-Time Transfer (RTT), Unlimited Flash Breakpoints |
| Target Interface | cJTAG, JTAG, SWD, SWO |
| Trace Interface | ETB Trace, ETM Trace, Live Trace Analysis, Trace Code Coverage, Unlimited Streaming Trace |
| Target Interface Speed | High (4 MB/s) |
