Flasher PRO (5.17.01)

$1,280.00

Stock Status:  In Stock
Delivery Time: Typically ships within 1 Business Day

Bulk Quantity Discounts Available

$1,280.00
1 - 9 pieces
$1,216.00 (5% off)
10 - 24 pieces
$1,152.00 (10% off)
25+ pieces

Additional adapters available here: Production Adapters

Add to Wishlist
Add to Wishlist
SKU: 5.17.01 Category:

Description

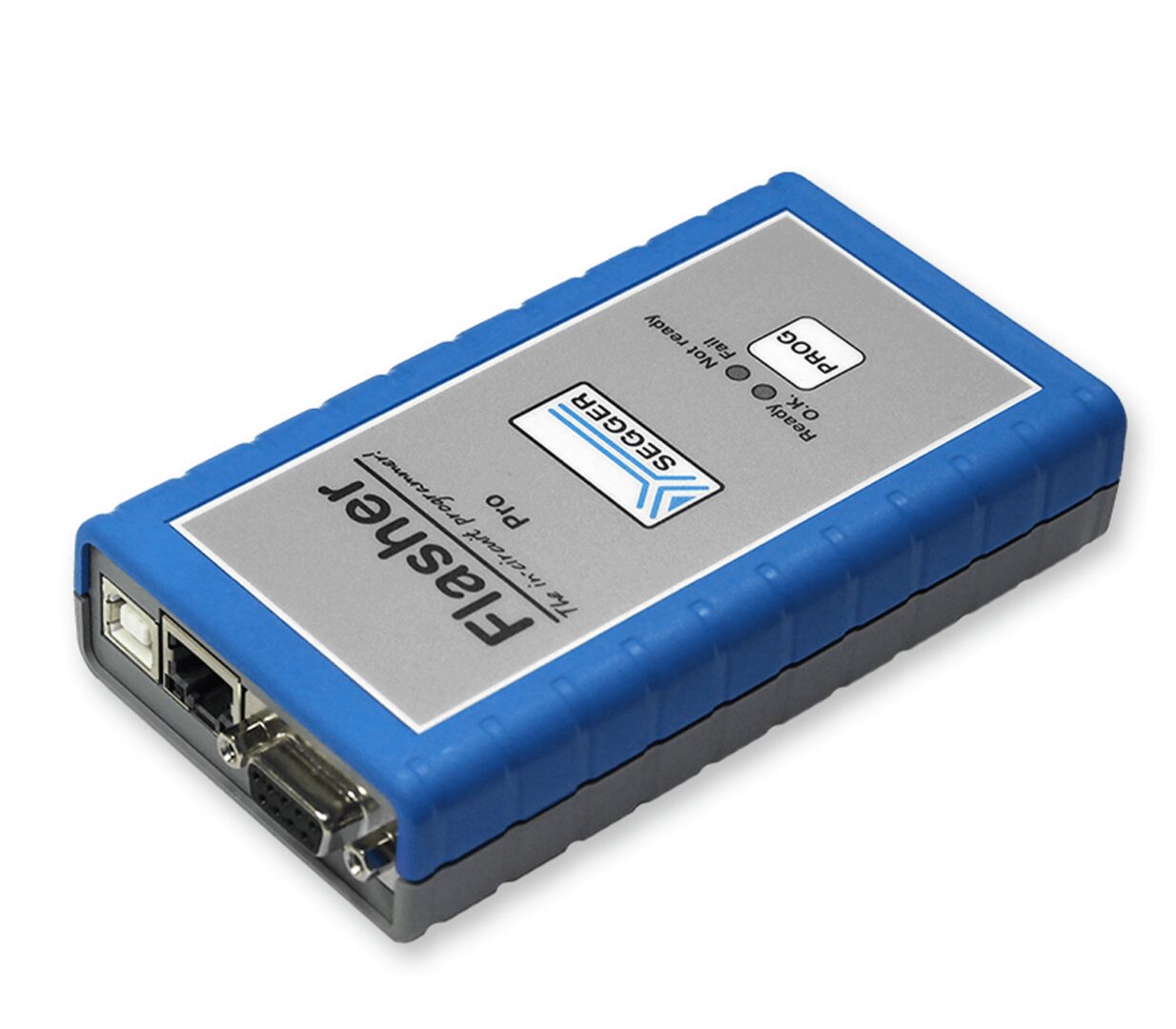

Get Flasher PRO, a programming tool for microcontrollers from the SEGGER Flasher family of programming tools.

Flasher PRO is built for microcontrollers (ARM7/9/11, Cortex-A/R/M or PPC core) with on-chip or external flash memory. This efficient programming tool is designed for programming flash targets with J-Flash software or stand-alone. It is cross platform, working on Linux, Windows and Mac.
Flasher PRO can be used as a stand-alone JTAG/SWD programmer. Just set it up, then it can be controlled without the use of a PC program. It has an Ethernet interface and supports internal and external flash devices.
Flasher PRO supports a wide range of CPU cores and an even wider range of different devices from various vendors. On this page, an overview of all supported CPU cores as well as devices for which flash programming is supported, is given. It comes with built-in 20-pin JTAG connector, compatible with the standard 20-pin connector defined by Arm.

Further Advantages
Each Flasher includes licenses to program with all supported MCUs and supports serial in target programming. It comes with free firmware updates.

Box Contents

  • Flasher PRO
  • 20 Pin 0.1″ Ribbon Cable
  • Ethernet Cable
  • USB Cable
  • RS232 Cable (1:1)

Includes free software updates and 1 (one) year of email support.

Additional Product Information on segger.com





Additional information

Weight 1 lbs
Dimensions 6.25 × 8.25 × 3 in
