Flasher Portable PLUS (5.16.02)

$1,280.00

Stock Status:  In Stock
Delivery Time: Typically ships within 1 Business Day

Bulk Quantity Discounts Available

Quantity
Discount (%)
Price
1 - 9
$1,280.00
10 - 24
5 %
$1,216.00
25+
10 %
$1,152.00

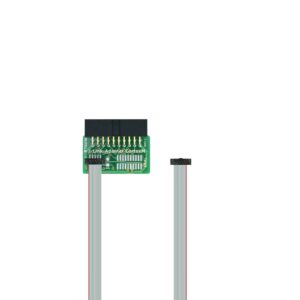

Additional adapters available here: Production Adapters

SKU: 5.16.02 Category:

Product Description

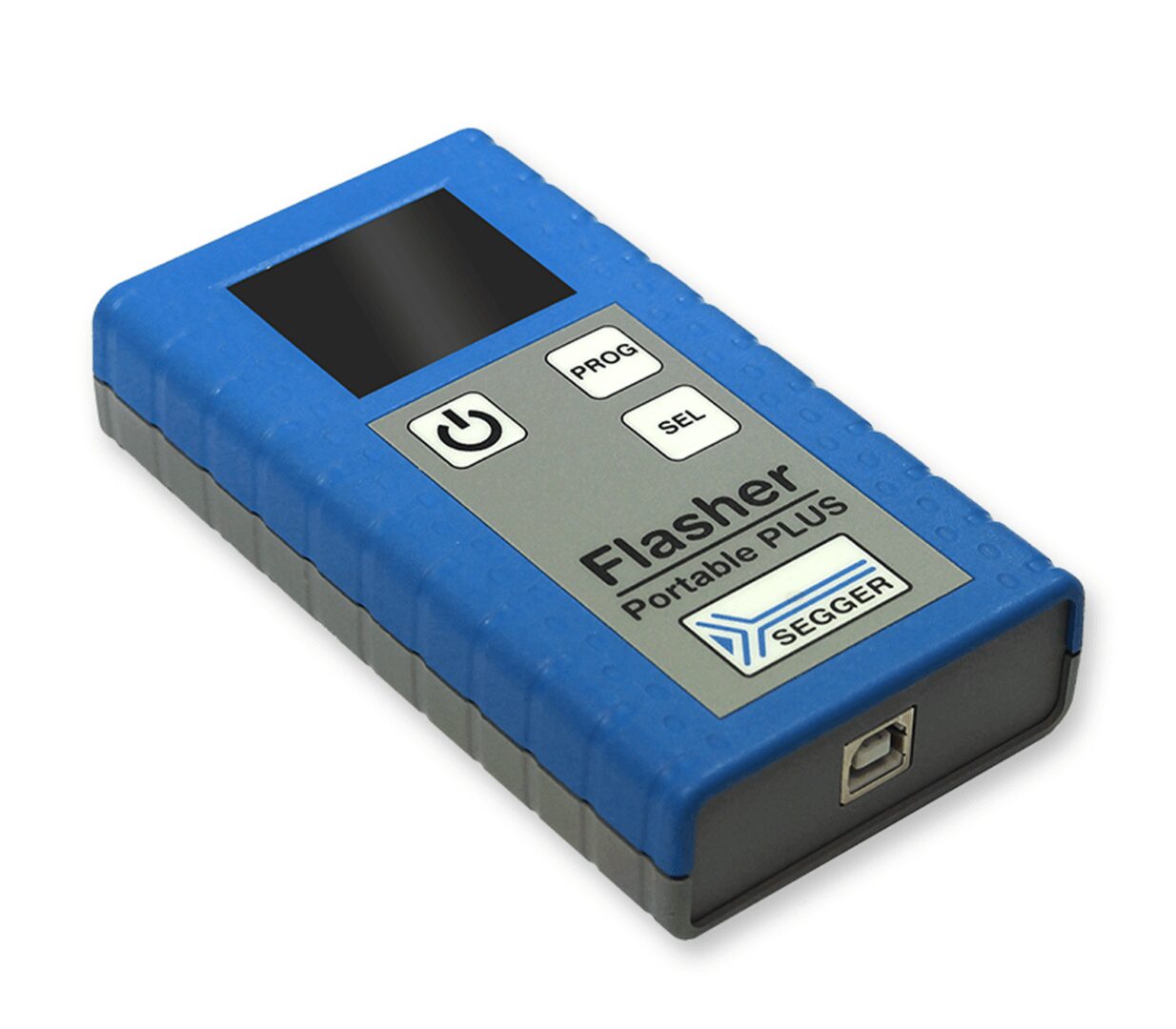

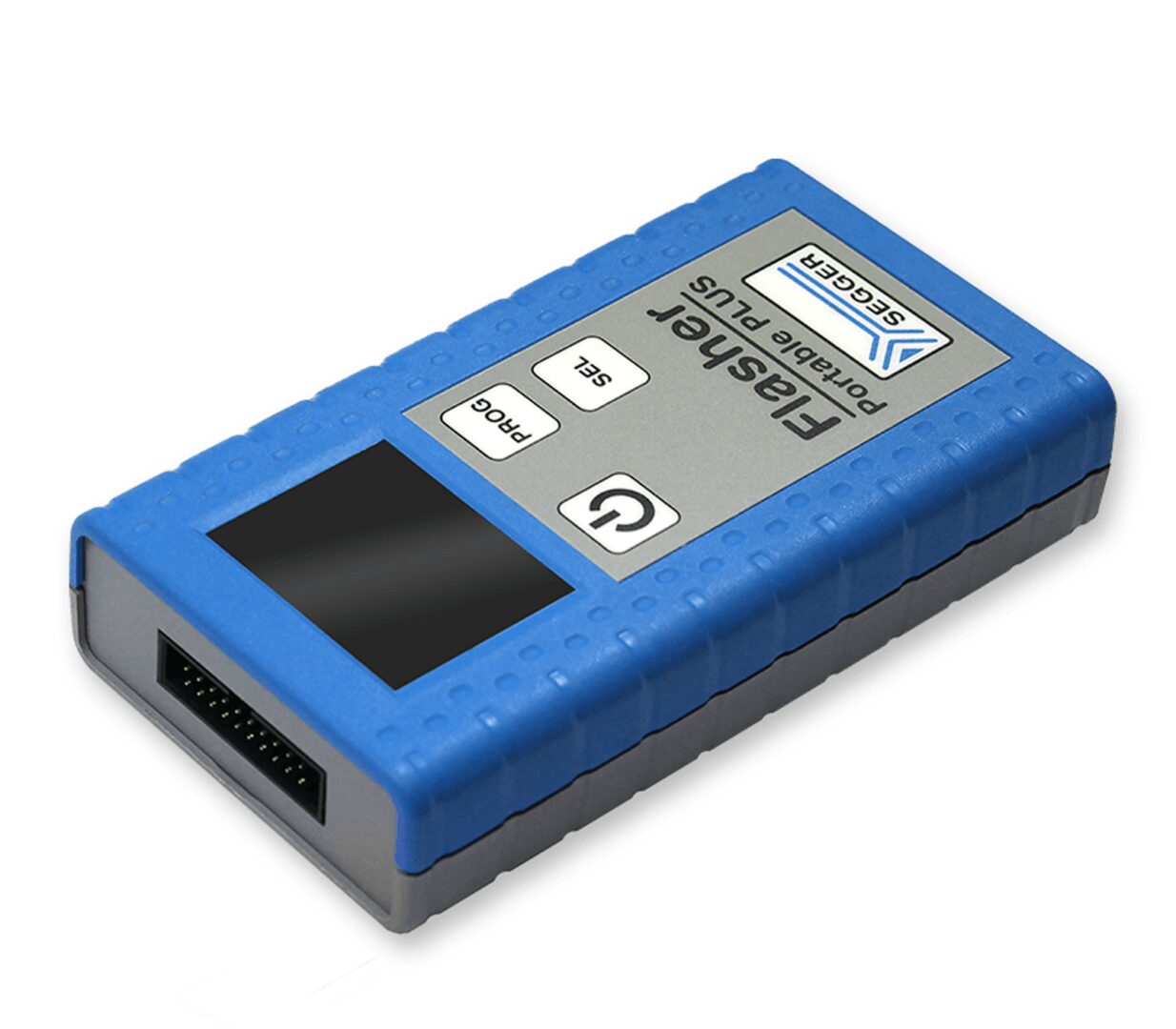

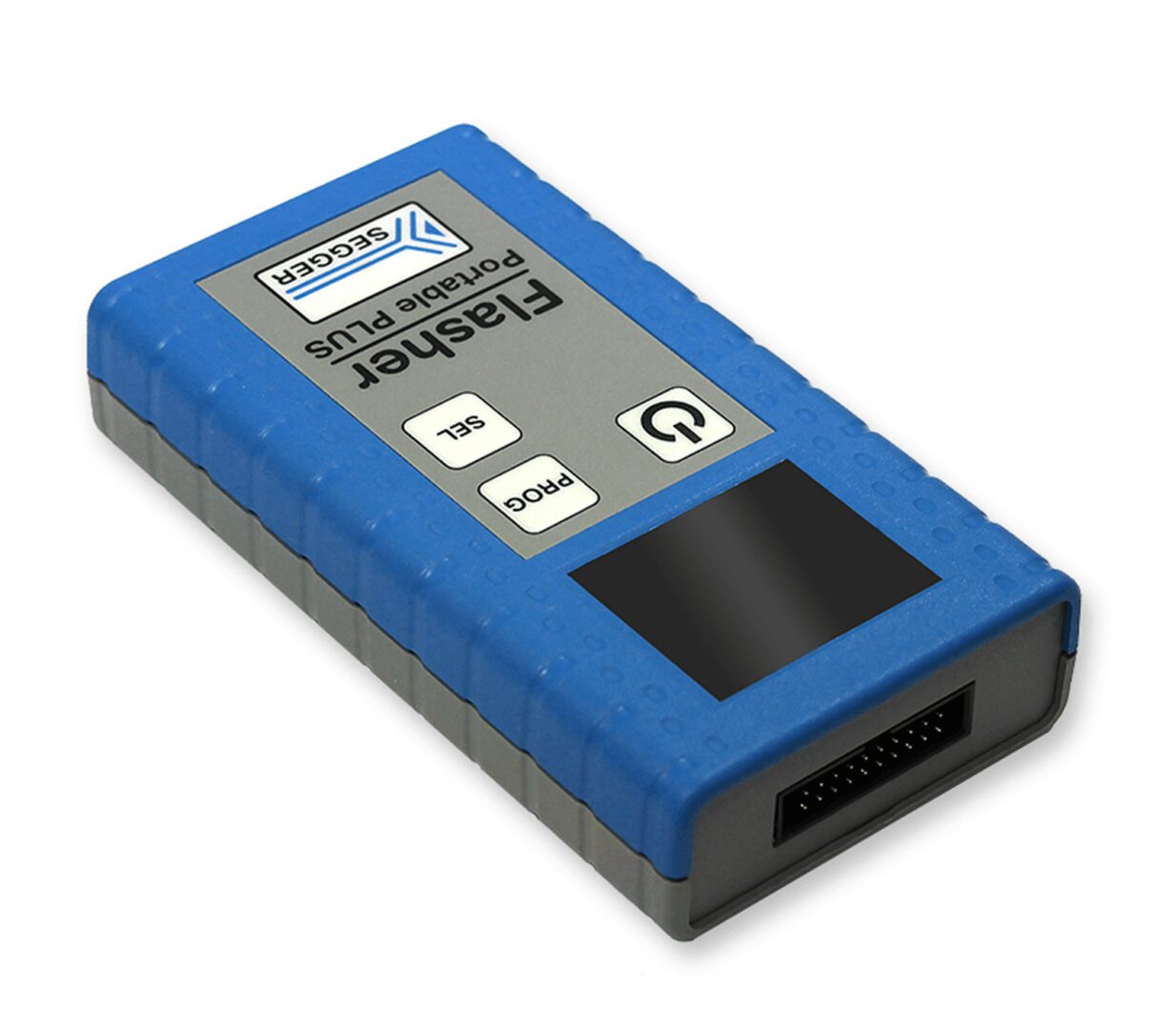

SEGGER 5.16.02 Flasher Portable PLUS
Get Flasher Portable PLUS, the handheld Flash Programmer for on-chip for on-chip and external flash memory and ARM7/9/11, Cortex-M/R/A, RX or PPC core.

Flasher Portable PLUS is designed for programming flash targets with the J-Flash software or stand-alone. Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself.

Powered by a rechargeable Li-Ion 680mAh, Flasher Portable PLUS doesn’t need an external power source. One battery charge supports up to 10 hours of programming. Developers can also enjoy full insights with a 1.8 inch display.
Flasher Portable PLUS support Authorized Flashing. It allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production. Push button allows easy selection between multiple images/configurations stored on Flasher.

Further Advantages
Flasher Portable PLUS supports a wide range of CPU cores and an even wider range of different devices from various vendors. On this page, an overview of all supported CPU cores as well as devices for which flash programming is supported is given.

Box Contents

  • Flasher Portable PLUS
  • 20 Pin 0.1″ Ribbon Cable
  • USB Cable

Includes free software updates and 1 (one) year of email support.

Additional Product Information on segger.com





Additional Information

Weight 1 lbs
Dimensions 6.25 × 8.25 × 3 in
Brand

SEGGER

Color

Blue

Product Type

Production

Host Interface

USB

Target Interface

(Q)SPI, 8051, C2, cJTAG, FINE, ICSP, IIC, ISP, JTAG, PDI, SPD, SWD, SWIM, UART, UPDI

Supported Targets

ARM Cortex Cores, ARM Legacy Cores, Microchip AVR, Microchip AVR32, Microchip PIC16, Microchip PIC32, NXP/ST PowerPC, Renesas M16, Renesas M32, Renesas RL78, Renesas RX, RISC-V, SiLabs 8051, ST Micro STM8, TI MSP430

Programming Trigger

Button, Flasher Hub-12, J-Flash
